Gunner G-Mark series of after printing cutter is engineered for industries like sign, printing, DTF/ heat transfer (clothing) . With G-Mark, production of custom stickers, labels is increased, and unattended processing has come true. Quality cutting of roll medias for heat trasfer, custom signs is applicable.
Auto feeder and cutting plotter form a complete set, while cutting plotter is able to work independently, improvement in utilization of your investment supports diverse business. Beside of proofing, the system is also applied for automated production of small batches.

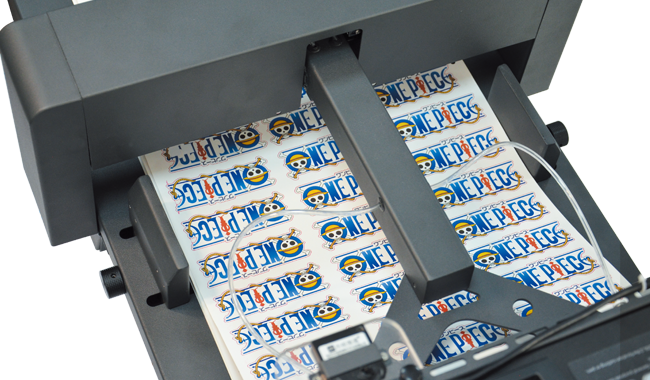

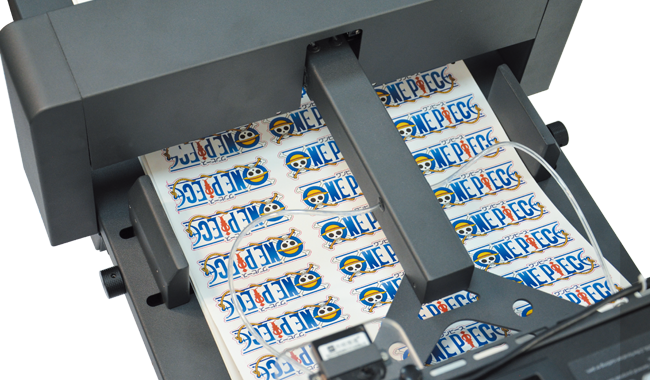

1, It is able to send automatically pre-printed sheets sized A4, A3 and A3+ to cutter continuously.
2, Automatic blowing device solves the problem of static electricity and deformation with materials laminated.
3, Double CCD camera scans registeration marks faster, the troubleshooting of difficulties to read registerations marks on reflective medias.
4, Templated software for easier operation, QR code retrieving and workpiece counting are available.
5, Auto feeding unit is compatible with world-class brand name of cutting plotters, with which your costs is cut.

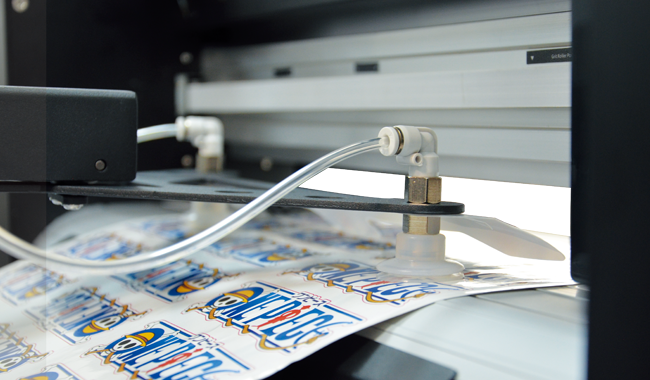

Auto-feeding Device

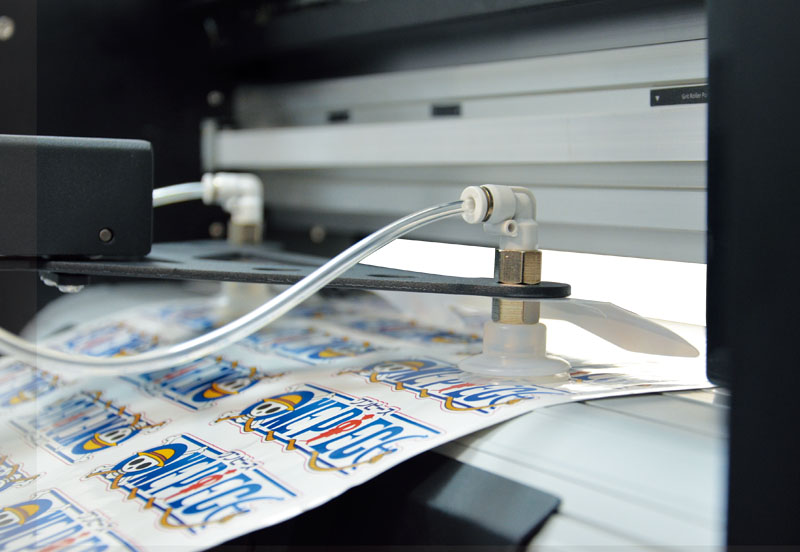

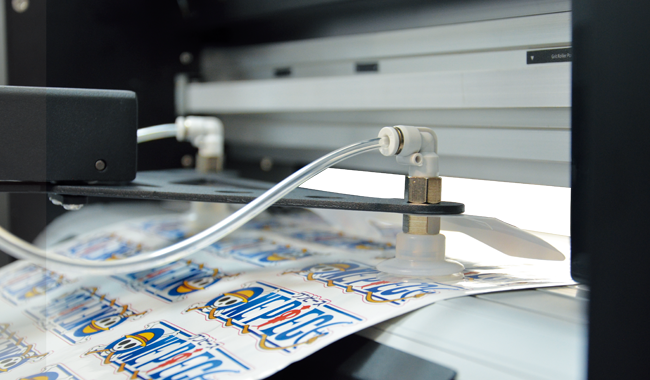

Media is lifted from the supply tray and placed in the cutter by an air suction cups. Laminated PVC, PET sheets are adsorbed onto each other by static electricity, which are hard to feed with grit roller, using of air suction cups is convinced an effective way for trouble shooting.
Double CCD Camera

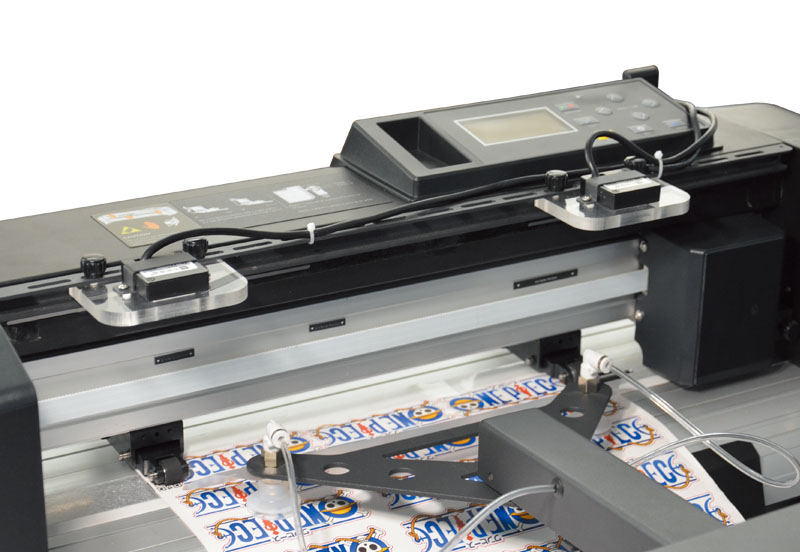

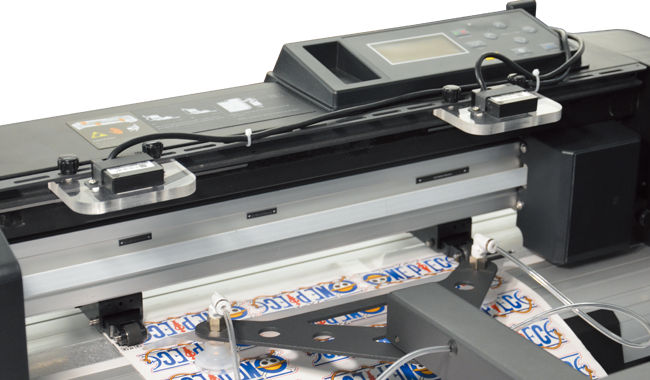

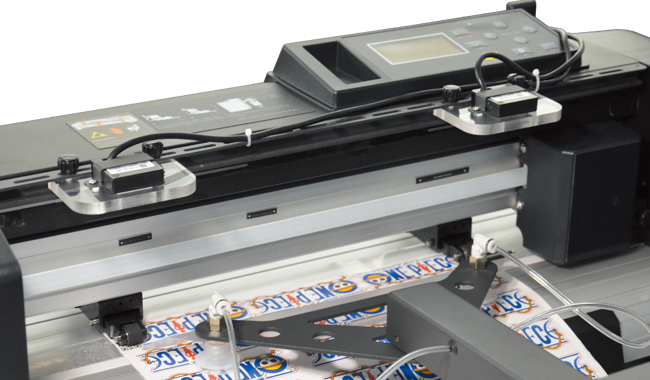

Two CCD cameras are able to scan registeration marks faster.
Double Limiters
Set up media size from both sides, easier for media positioning and size adjusting.

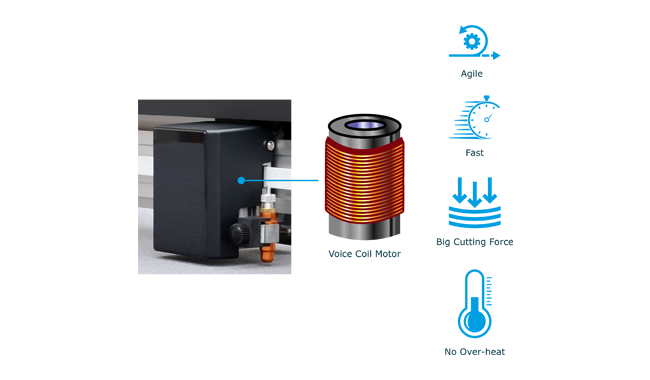

Advanced Tool Carriage
The tool carriage adopts voice coil motor which is featured as fast, agile and no overheat for long-time non-stop operation.
Parameters
| Auto Feeding Unit | Item | Specifications | ||
Media sizes applicable | Media width ：297mm to 350mm | |||
| Media length：210mm to 500mm | ||||
| A4 (297mm x 210mm）loaded in landscape orientation | ||||
| A3 (297mm x 420mm) loaded in portrait orientation | ||||
| A3+(329mm x 483mm) loaded in portrait orientation | ||||

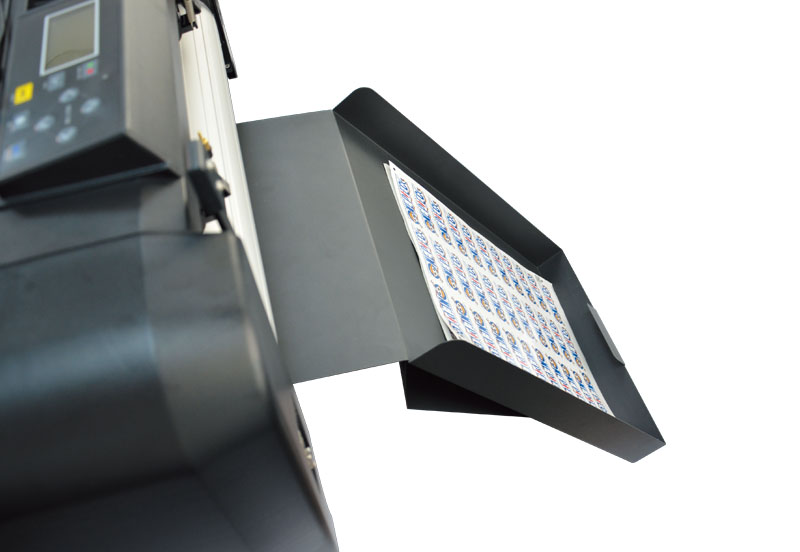

| Capacity of supply tray | Up to 200 sheets or up to 40mm in height (depend on material and thickness of media) | |||
| Outer dimension | 610 x 503 x 270mm | |||
| Weight | 14kg | |||
| Registeration marks sensing | Double CCD camera | |||
| Interface | USB 2.0 | |||
| Power source | 100-240V，60W ( AC Adapter available) | |||
| OS supported | Windows 11 / 10 / 8 / 7 | |||
Cutting Unit | Max. cutting width | 450mm | ||
| Max. cutting force | 450G | |||
| Max. cutting speed | 800mm/s | |||
| Power consumption | 120w | |||
| Interface | USB memory、USB2.0 | |||
| Software | Compatible with CDR、AI | |||
| Plugin software SignWorkPro included | ||||
| Work process | 1. Load media--> 2. CCD cameras read registeration marks and find out corresponding cutting job --> 3. Contour cutting -->4. Collect finished product | |||
