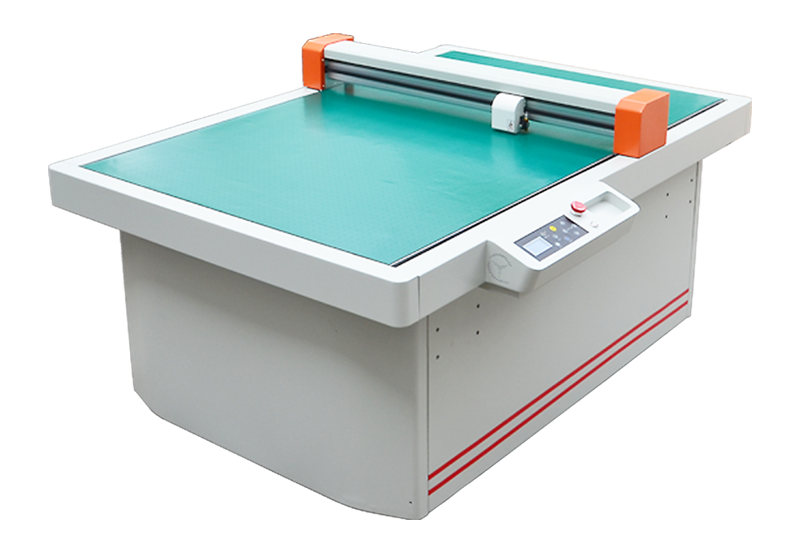

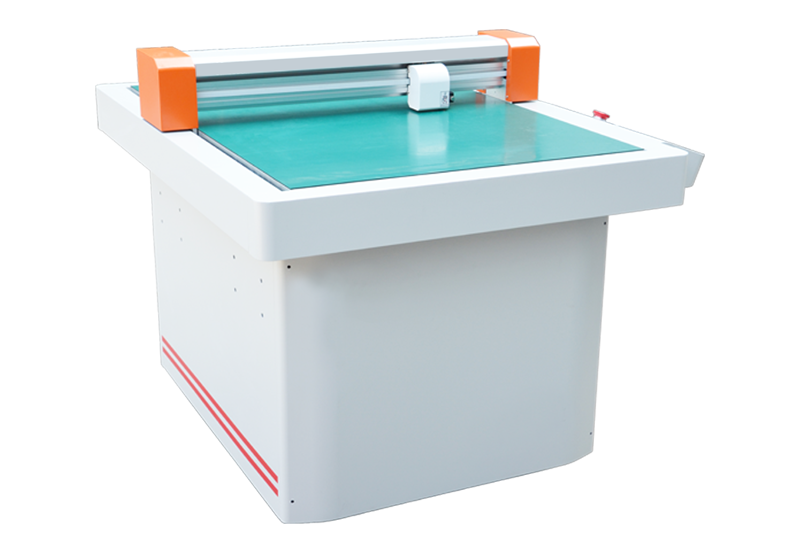

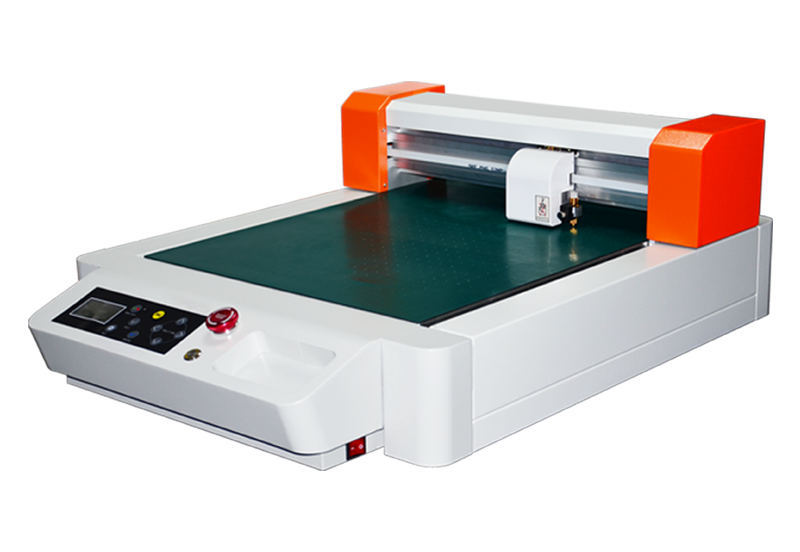

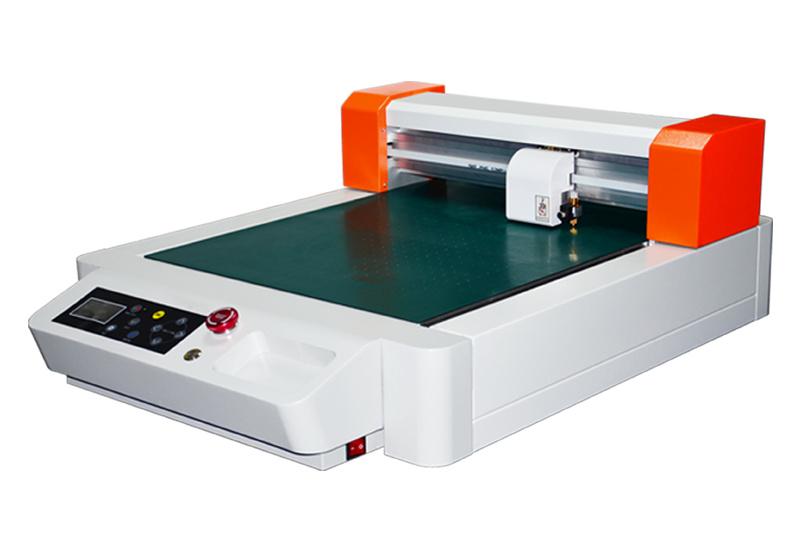

High Performance Flatbed Cutting Plotter

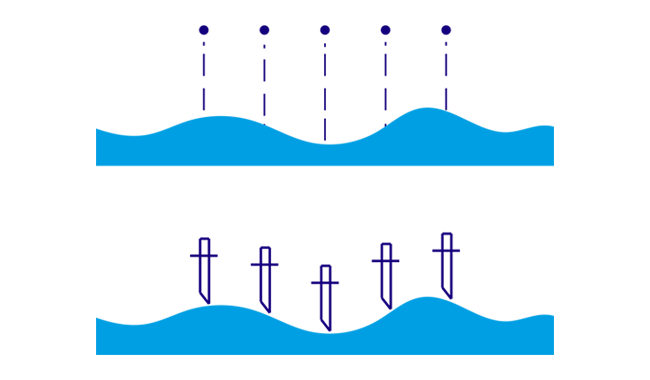

Grating Ruler

Inevitably material surface is not level from point to point, the grating ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool paths across the entire table. In short, Grating Ruler is of key importance for consistent cutting depth.

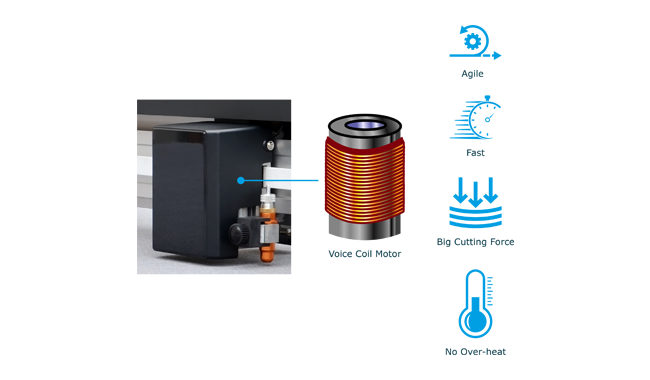

Advanced Tool Carriage

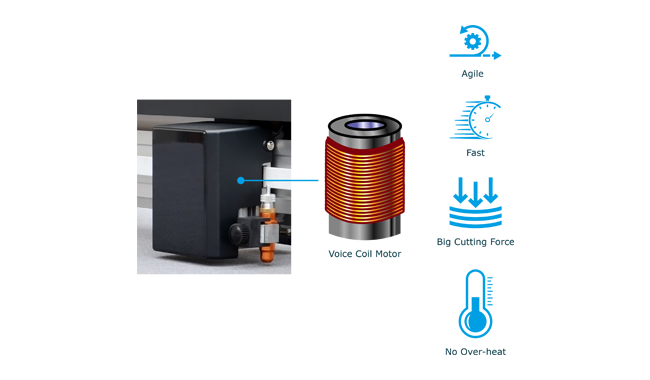

The tool carriage adopts the structure of sports car, using of silent voice coil motor makes it outstrip it’s rivals. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field in China.

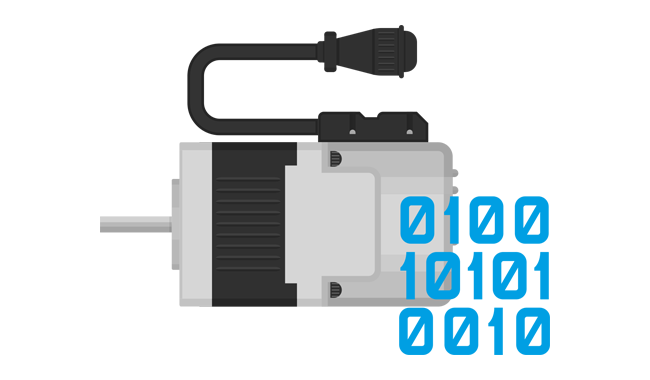

Servo Drive

Intelligent servos bring out smooth acceleration, big torque, precise cutting / plotting operation, excellent durability and volume production. Servos ensure the cutting plotter to run at Max. Speed: 600mm/s.

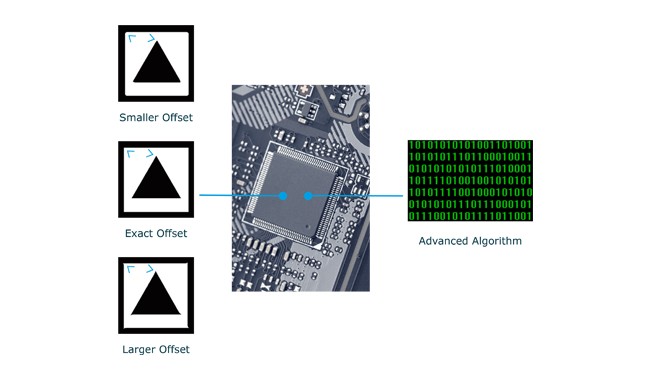

Making Blade-tip Compensation by Chip

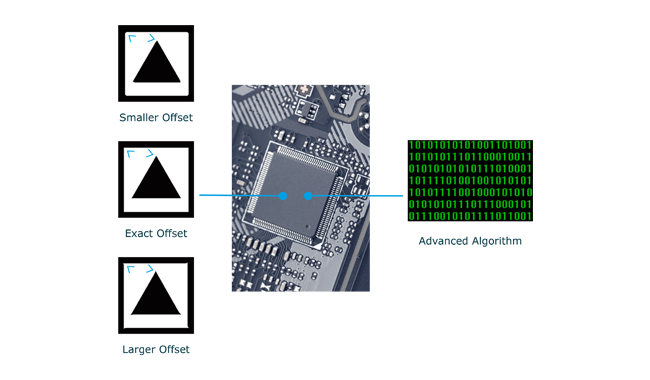

Gunner makes blade-tip compensation with Chip instead of software, the digital cutter works with constant high precision no matter what kind of CAD / CAM software is applied.

Fast Registration Marks Detection with CCD Camera

CCD camera detects the intricate die-less contours efficiently, problems caused by position error of human, poor quality printing are resolved. CCD camera is applied for wider varieties of colors.

Intelligent Error Correction

If material is placed inclined (±15°), our system is still able read the registration marks, so it is unnecessary to put material always straightly, this feature helps a lot to save time.

No Need OVERCUT

In every cutting path, the start and end point join with each other accurately, while no need to setup any OVERCUT.

Clean Smooth Edge Quality

The grating ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. Pealing off the cutting piece/waste material easily can cut down workload greatly for the users. Advanced algorithm developed by Gunner eliminates the distorted, rounded and lifted corners obviously.

Cutting Force in 8 Step

With Gunner software, user is enabled to put different colors for different cutting paths, and set the processing sequence as color sequence. This is a important feature for cutting medias with multiple layers, which requires different cutting force in different layer.

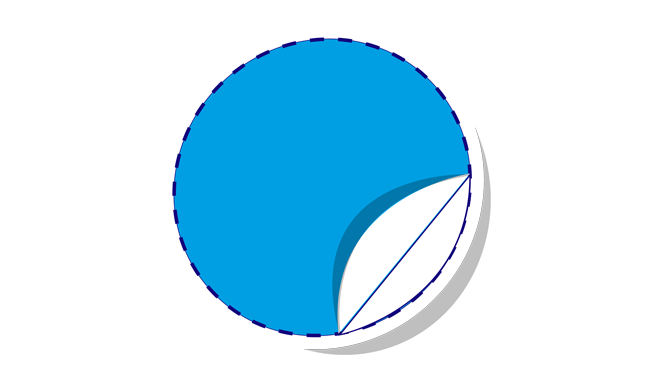

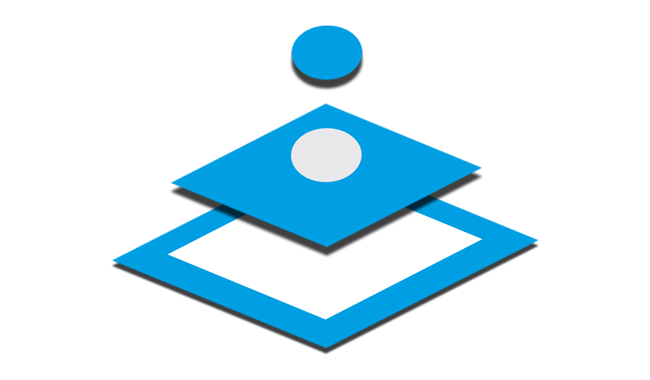

Half Cut / Perforation Cut

Half cut / Perforation cut is available, every time you may carry out either one or both.

Dotted Lines Cutting

Dotted line cutting is applied for cutting medias with 2 layers typically and also kinds of paper. The feature asks for accurate control of cutting forces.

Leading Compatibility

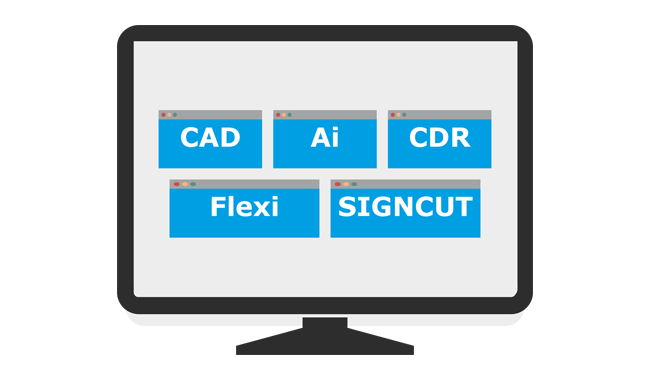

Leading the same industry, Gunner is able to adapt to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw, Flexisign, SIGNCUT; Various pattern software in automotive aftermarket like 3M™ Pattern and Solutions Center (PSC), Core by LLUMAR, INTEGO are already compatible to Gunner system.

Intelligent Bleeding for Easier Overlap Operation

Intelligent Bleeding function makes overlap operation easier for the installers, this is a very useful feature for big sized signs / indicators.

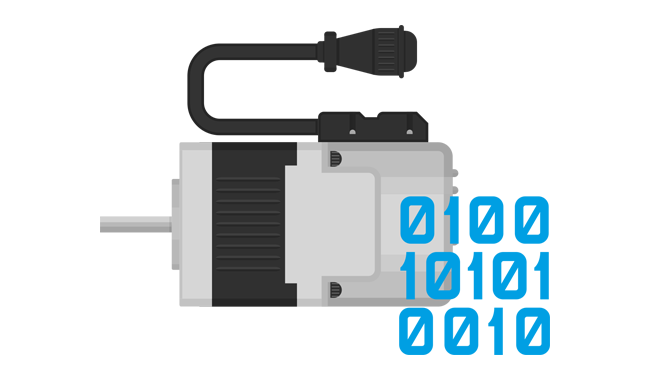

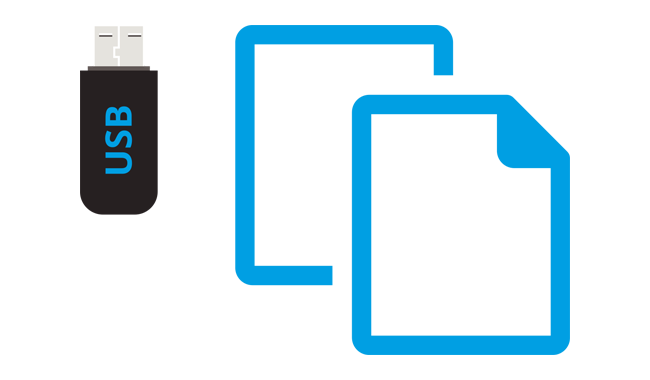

Duplicate Cutting Jobs Offline

Knowing exactly what trouble the users and what they want, Our system is designed to fix these practical headaches. With Gunner cutting plotters, users are enabled to duplicate the cutting jobs offline, which is much convenient than doing that with connecting to PC via USB cord. The function of duplicating cutting jobs with USB memory is a leading technology that developed by our-self, this feature guarantees efficient volume production.

DXF Direct Output

Gunner cutting plotteris compatible with DXF file directly while no need any format transition.

One-click to Load Print Driver

Gunner optimized the process of loading print driver by one-click. User can easily send cutting jobs by any CAD that with printer feature.

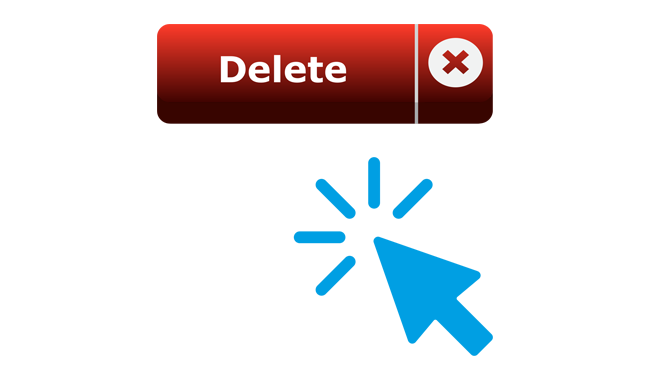

One-click to Clear History

One-click to delete the cutting job being processed and clear it completely from buffer memory.

Quality Components

For outstanding performance and long-term reliable working, we only use world class brand name components.

Vacuum System

Strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting.

Series Cutter Blades Available

Angle: 30° / Φ2.0mm for prismatic reflective sheeting, thick media or small character
Angle: 60° / Φ2.0mm for reflective film
Angle: 45° / Φ2.0mm for PPF

Leading Calibration

Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between track of gantry and table top.

Model	GR3245	GR6090	GR9015
Table Size	500 x 640mm	779x 1070mm	1089x 1700mm
Working Size	320 x 450mm	610 x 900mm	900 x 1500mm
Cutting Depth	0.03-1.5mm
Max. Cutting Speed	600mm / s
Max. Cutting Force	600G / 5.8N in 8 Steps
Cutting Force Setup	Adjustable in Every 1G
Min. Letter Size	3 x 3mm
Drive	Servo
Port in Standard	USB
File Format	HP-GL, PLT
Number of Tool Holder	1 Blade Cutter Holder, 1 Pen Holder
Power Input	AC 90-220v, 50-60Hz
Power Consumption	620w
IOS	Win 10/8/7/XP
Software Compatible	Adobe Illustrator, CorelDRAW, AutoCAD, SignCut, SignMaster
Method to Fix Media	Vacuum Table
Bar-code for Data Link	For option
Package Size W-L-H	760x 1050x 600mm	1220x 1350x 1220mm	1520x 1950x 1220mm
Gross / Net Weight	84/ 44kg	160/ 90kg	300/ 220kg
Floor Plan W-L-H	660x 960x 330mm	1080x 1200x 980mm	1400x 1820x 980mm

Gunner Flatbed Cutting Plotter
