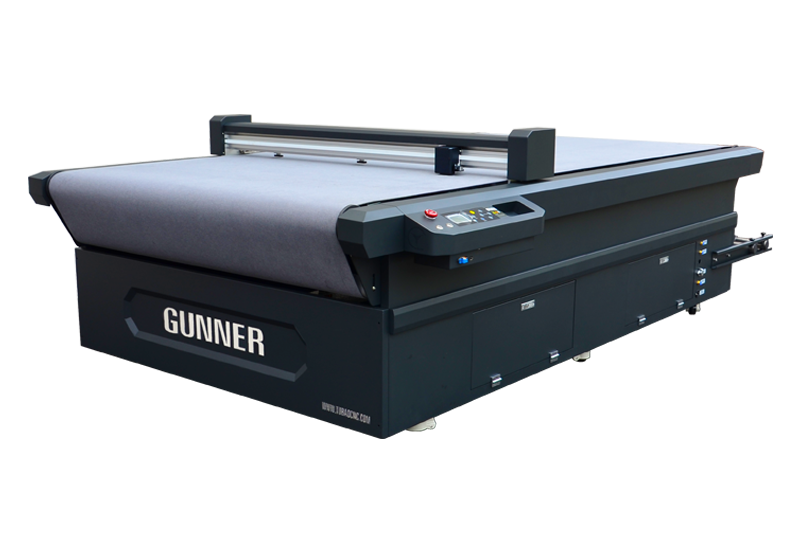

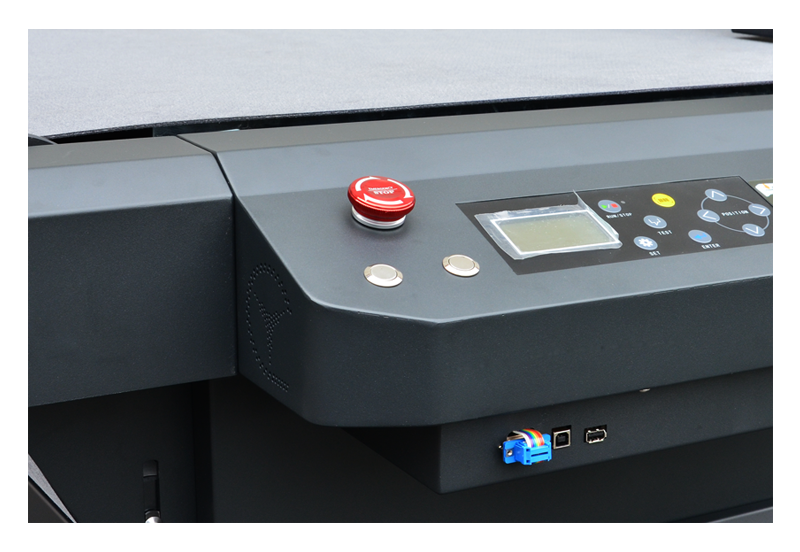

Gunner F Series- GR1312F/ 1612F/ 1325F, a faster, more accurate, more economical cutting plotter designed for industries as Road& Traffic Safety Signs, Automotive Aftermarket, Heat Transfer Apparel(DTF), Print Cut, Die Cutting and other signage graphics.
F Series is typically applied to cut both printed and unprinted medias with thickness ≤1.5mm, such as Reflective Sheeting, Paint Protection Film/PPF, Window Tint, PPE, PET, PVC, PU, Paper and other vinyl stickers with incomparable high efficiency.
F Series of auto fed flatbed cutting plotter is capable of cutting materials in roll and sheet/piece with outstanding high quality, series of cutting methods including perforation cutting, half cutting, creasing and marking benefit clients greatly with more output and less cost of labor.
Grating Ruler

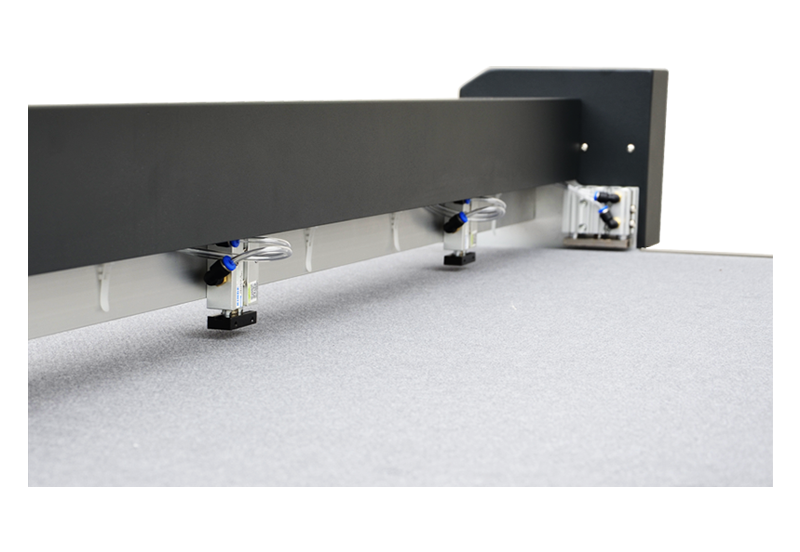

Inevitably material surface is not level from point to point, the grating ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool paths across the entire table. In short, Grating Ruler is of key importance for consistent cutting depth.
Advanced Tool Carriage

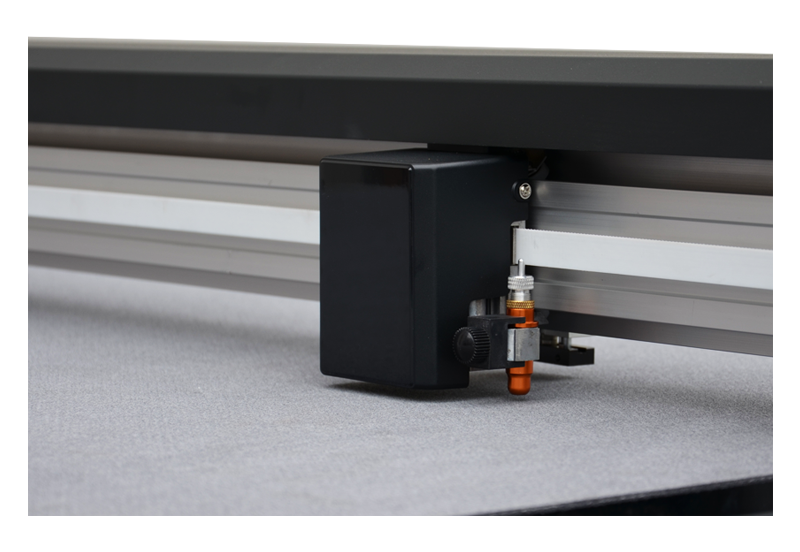

The tool carriage adopts the structure of sports car, using of silent voice coil motor makes it outstrip it’s rivals. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field in China.
Servo Drive
Intelligent servos bring out smooth acceleration, big torque, precise cutting / plotting operation, excellent durability and volume production. Servos ensure the cutting plotter to run at Max. Speed: 600mm/s.
Making Blade-tip Compensation by Chip
Gunner makes blade-tip compensation with Chip instead of software, the digital cutter works with constant high precision no matter what kind of CAD / CAM software is applied.
Fast Registration Marks Detection with CCD Camera
CCD camera detects the intricate die-less contours efficiently, problems caused by position error of human, poor quality printing are resolved. CCD camera is applied for wider varieties of colors.
Segmented Area Cutting Operation
Additional registration marks are available for more precise axis alignment.
Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for heavier media or media that has been laminated.
Automatic Data Retrieving with Bar-code
One touch to find the cutting job out of those saved in the USB memory by scanning the printed Bar-code, while no need to connect to computer. Multiple jobs are processed automatically while production errors are eliminated.
Auto Fed System
Conveyor is applied for long seamless cutting / plotting operation.
The coordination of Gunner program, auto feeding system and CCD camera accomplishes fast and accurate nesting / contour cutting.
No Need OVERCUT
In every cutting path, the start and end point join with each other accurately, while no need to setup any OVERCUT.
Clean Smooth Edge Quality
The grating ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. Pealing off the cutting piece/waste material easily can cut down workload greatly for the users. Advanced algorithm developed by Gunner eliminates the distorted, rounded and lifted corners obviously.
Cutting Force in 8 Step
With Gunner software, user is enabled to put different colors for different cutting paths, and set the processing sequence as color sequence. This is a important feature for cutting medias with multiple layers, which requires different cutting force in different layer.
Half Cut / Perforation Cut
Half cut / Perforation cut is available, every time you may carry out either one or both.
Dotted Lines Cutting
Dotted line cutting is applied for cutting medias with 2 layers typically and also kinds of paper. The feature asks for accurate control of cutting forces.
Leading Compatibility
Leading the same industry, Gunner is able to adapt to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw, Flexisign, SIGNCUT; Various pattern software in automotive aftermarket like 3M™ Pattern and Solutions Center (PSC), Core by LLUMAR, INTEGO are already compatible to Gunner system.
Intelligent Bleeding for Easier Overlap Operation
Intelligent Bleeding function makes overlap operation easier for the installers, this is a very useful feature for big sized signs / indicators.
Duplicate Cutting Jobs Offline
Knowing exactly what trouble the users and what they want, Our system is designed to fix these practical headaches. With Gunner cutters, users are enabled to duplicate the cutting jobs offline, which is much convenient than doing that with connecting to PC via USB cord. The function of duplicating cutting jobs with USB memory is a leading technology that developed by our-self, this feature guarantees efficient volume production.
DXF Direct Output
Gunner cutter is compatible with DXF file directly while no need any format transition.
One-click to Load Print Driver
Gunner optimized the process of loading print driver by one-click. User can easily send cutting jobs by any CAD that with printer feature.
One-click to Clear History
One-click to delete the cutting job being processed and clear it completely from buffer memory.
Quality Components
For outstanding performance and long-term reliable working, we only use world class brand name components.
Vacuum System
Strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting.
Series Cutter Blades Available
Angle: 30° / Φ2.0mm for prismatic reflective sheeting, thick media or small character
Angle: 60° / Φ2.0mm for reflective film
Angle: 45° / Φ2.0mm for PPF
Leading Calibration
Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between track of gantry and table top.
Customer Centered
We design and produce our quality equipment and the controller for features and user-friendly. We can also tailor to custom upgrades and requests to fit our customers' needs with high quality and strong support being our priority. All of this and more for our very competitive offerings as compared to others.
Parameters
| Model | GR1312F Flatbed Cutting Plotter | GR1612F Flatbed Cutting Plotter | GR1325F Flatbed Cutting Plotter |
| Working Size on X Axis | 1300mm (Non-contour Cutting) | 1520mm (Non-contour Cutting) | 1300mm (Non-contour Cutting) |
| 1240mm (Contour Cutting) | 1490mm (Contour Cutting) | 1240mm (Contour Cutting) | |
| Working Size on Y Axis | Sheet Material: 1200mm | Sheet Material: 1200mm | Sheet Material: 2500mm |
| Roll Material: Whole Roll | Roll Material: Whole Roll | Roll Material: Whole Roll | |
| Max.Media Width Applicable | 1469mm | 1689mm | 1469mm |
| Applicable Media Thickness | ≤1.5mm | ||
| Applicable Media | Reflective Sheeting, PPF, Window Tint, PPE, PET, PVC, Vinyl Stick | ||
| Method to Feed Media | Conveyor & Roll Media Bracket | ||
| Method to Fix Media | Vacuum Table | ||
| Max. Cutting Speed | 600mm / s | ||
| Max. Cutting Force | 600G / 5.8N in 8 Steps | ||
| Cutting Force Setup | Adjustable in Every 1G | ||
| Cutter Blade Diameters | Φ2.0mm | ||
| Cutter Blade Angles | 30°, 45°, 60° | ||
| Dotted Lines Cutting | Included | ||
| Drive | AC Servo | ||
| Mechanical Resolution | 0.0125mm | ||
| IOS | Win10 / 8 / 7 / XP | ||
| Memory Buffer | 2MB | ||
| CAD/CAM Software | Windows Driver, SignWorkPro, CADtoPlotpro | ||
| LCD | English / Chinese | ||
| File Format | HP-GL, PLT | ||
| Port in Standard | USB, RS-232 | ||
| Registration Marks Recognition | CCD Camera | ||
| Power Input | AC 110- 220V，50-60Hz | ||
| Power Consumption | 3.2kw | 3.2kw | 3.2kw |
| Cutter Holder | 1 | ||
| Bar-code for Data Link | For option | ||
| Roll Media Bracket | Included | ||
| Floor Plan W-L-H | 1900 x 2150 x 1010mm | 2100 x 2150 x 1010mm | 1900 x 3400 x 1010mm |
| Package Size W-L-H | 1920 x 1850 x 1220mm | 2150 x 1920 x 1220mm | 3120 x 2150 x 1220mm |
| Gross / Net Weight | 320 / 240kg | 340 / 260kg | 850 / 620kg |
These advanced flatbed cutting plotters provide end users with unmatched cutting capabilities on rigid and flexible substrates as well as roll media.Known for its precision and smooth motion, the Gunner F Series is an easy-to-use, programmable cutter/plotting solution for small and large businesses. With an extensive list of standard features and available customizable options, each system is built to ensure your business gets the right cutter for your application and investment. Manufactured in our China factory, each machine is extensively tested before leaving the factory to ensure longevity and uncompromising quality of the cutting system.
